Industrial
Electrical Enclosure EID-ST Series:
Eclipse Sloped Top
(ST) Series -
NEMA 4, 12 Single Door Enclosure.
EID-ST Series, Eclipse
"Sloped-Top" Series -
NEMA 4, 12 Single Door Enclosure.
Application:
-
Designed to enclose electrical
and/or electronic equipment and protect against harsh,
industrial environments for wall-mount applications.
-
Sloped top prevents water from
resting on top as well as providing potential for controls
mounting.
-
Impressive styling features
like hidden hinges and attractive latching systems make the
Eclipse a suitable addition to any high-tech equipment
installation.
-
A wide range of sizes and
practical accessories make this product line a complete
package.
Standards:
-
UL 508 Type 3R, 4, 12 and 13
-
CSA Type 3R, 4, 12 and 13
-
Complies with
Construction:
-
Formed 14 or 16 gauge steel.
-
Continuously welded seams
ground smooth.
-
Door stiffeners are provided
where required for increased strength and rigidity -
designed to also permit additional mounting options.
-
Formed lip on enclosure to
exclude flowing liquids and contaminants.
-
Door latches feature the added
safety of quarter turn slot requiring use of tool for
opening.
-
Doors may be easily removed
for modifications and are interchangeable.
-
Seamless poured-in place
gasket.
-
Collar studs provided for
mounting inner panel.
-
Includes hardware kit with
panel mounting nuts and sealing washers for wall mounting
holes.
-
Bonding stud provided on door
and grounding stud installed in enclosure.
-
Hinges are finished in mild
steel.
-
Stainless steel hinge pins and
quarter turns.
Finish:
Cover and enclosure are finished
in recoatable RAL 7035 light gray textured powder coating.
Accessories:
-
Air conditioners
-
Blowers
-
Breather Kits
-
DIN Rails
-
DIN Rail Mounting Kit
-
Door Stop Kit
-
Filter fans
-
Gland Plates
-
Heaters
-
Handles
-
Inner Panels
-
Quarter Turn Inserts and Keys
-
Literature Pocket
-
Mounting Foot Kit
-
Swing Frame
-
Swing Panel
-
Replacement Hinge Pins
-
Replacement Quarter Turn
Assemblies
-
Thermostats
-
Touch Up Paint
-
UL/CSA Approved Hardware Kit
-
Padlock Adapter (EID-EPA)
|
Part Number |

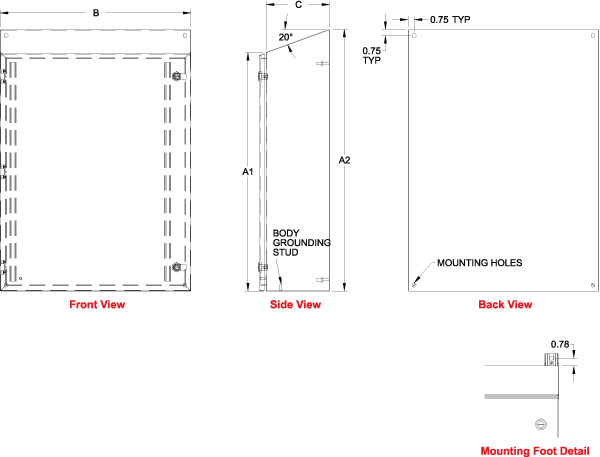

Dimensions [in] Enclosure Size |
Gauge |
Panel
Part No. |
Latch
Qty |
Latch
Style |
Hinge
Qty |
|
A1 |
A2 |
B |
C |
Door |
Body |
|
EID-ST12126LG |
12.0 |
14.2 |
12 |
6 |
16 |
16 |
EID-EP1212 |
1 |
Qtr Turn |
2 |
|
EID-ST16126LG |
16.0 |
18.2 |
12 |
6 |
16 |
16 |
EID-EP1612 |
1 |
Qtr Turn |
2 |
|
EID-ST20166LG |
20.0 |
22.2 |
16 |
6 |
16 |
16 |
EID-EP2016 |
1 |
Qtr Turn |
2 |
|
EID-ST20206LG |
20.0 |
22.2 |
20 |
6 |
16 |
16 |
EID-EP2020 |
1 |
Qtr Turn |
2 |
|
EID-ST16168LG |
16.0 |
18.9 |
16 |
8 |
16 |
16 |
EID-EP1616 |
1 |
Qtr Turn |
2 |
|
EID-ST20168LG |
20.0 |
22.9 |
16 |
8 |
16 |
16 |
EID-EP2016 |
1 |
Qtr Turn |
2 |
|
EID-ST20208LG |
20.0 |
22.9 |
20 |
8 |
16 |
16 |
EID-EP2020 |
1 |
Qtr Turn |
2 |
|
EID-ST24208LG |
24.0 |
26.9 |
20 |
8 |
16 |
16 |
EID-EP2420 |
1 |
Qtr Turn |
2 |
|
EID-ST24248LG |
24.0 |
26.9 |
24 |
8 |
14 |
16 |
EID-EP2424 |
2 |
Qtr Turn |
2 |
|
EID-ST30248LG |
30.0 |
32.9 |
24 |
8 |
14 |
16 |
EID-EP3024 |
2 |
Qtr Turn |
3 |
|
EID-ST30308LG |
30.0 |
32.9 |
30 |
8 |
14 |
14 |
EID-EP3030 |
2 |
Qtr Turn |
3 |
|
EID-ST36308LG |
36.0 |
38.9 |
30 |
8 |
14 |
14 |
EID-EP3630 |
2 |
Qtr Turn |
3 |
|
EID-ST242410LG |
24.0 |
27.6 |
24 |
10 |
14 |
16 |
EID-EP2424 |
2 |
Qtr Turn |
2 |
|
EID-ST302410LG |
30.0 |
33.6 |
24 |
10 |
14 |
16 |
EID-EP3024 |
2 |
Qtr Turn |
3 |
|
EID-ST363010LG |
36.0 |
39.6 |
30 |
10 |
14 |
14 |
EID-EP3630 |
2 |
Qtr Turn |
3 |
|
EID-ST483610LG |
48.0 |
51.6 |
36 |
10 |
14 |
14 |
EID-EP4836 |
1 |
3-point |
4 |
|
EID-ST242412LG |
24.0 |
28.4 |
24 |
12 |
14 |
16 |
EID-EP2424 |
2 |
Qtr Turn |
2 |
|
EID-ST302412LG |
30.0 |
34.4 |
24 |
12 |
14 |
16 |
EID-EP3024 |
2 |
Qtr Turn |
3 |
|
EID-ST363012LG |
36.0 |
40.3 |
30 |
12 |
14 |
14 |
EID-EP3630 |
2 |
Qtr Turn |
3 |
|
EID-ST363612LG |
36.0 |
40.3 |
36 |
12 |
14 |
14 |
EID-EP3636 |
2 |
Qtr Turn |
3 |
|
EID-ST483612LG |
48.0 |
52.3 |
36 |
12 |
14 |
14 |
EID-EP4836 |
1 |
3-point |
4 |
|
EID-ST603612LG |
60.0 |
64.3 |
36 |
12 |
14 |
14 |
EID-EP6036 |
1 |
3-point |
4 |
|
EID-ST363016LG |
36.0 |
41.8 |
30 |
16 |
14 |
14 |
EID-EP3630 |
2 |
Qtr Turn |
3 |
|
EID-ST483616LG |
48.0 |
53.7 |
36 |
16 |
14 |
14 |
EID-EP4836 |
1 |
3-point |
4 |
|
EID-ST302420LG |
30.0 |
37.3 |
24 |
20 |
14 |
14 |
EID-EP3024 |
2 |
Qtr Turn |
3 |
|
