Electrical Enclosure EID-EN4SD W Series:
Eclipse Series -
NEMA 4, 12 Single Window Door (SDW) Enclosure.
EID-EN4SDW Series, Eclipse Series -
NEMA 4, 12 Single Window Door Enclosure.
Application:
-
Designed to enclose electrical and/or electronic equipment
in wall-mount applications where viewing of component
operation is necessary while maintaining protection ratings.
-
Impressive styling features like hidden hinges, attractive
latching systems make the Eclipse a suitable addition to any
high-tech equipment installation.
-
A
wide range of sizes and practical accessories make this
product line a complete package.
Standards:
Construction:
-
Formed 14 or 16 gauge steel.
-
Full view UV resistant
polycarbonate window allow maximum viewing area of inner
panel.
-
Smooth, continuously welded
seams ground smooth.
-
Door stiffeners are provided
where required for increased strength and rigidity -
designed to also permit additional mounting options.
-
Formed lip on enclosure to
exclude flowing liquids and contaminants.
-
Door latches feature the added
safety of quarter turn slot requiring use of tool for
opening.
-
Doors may be easily removed
for modifications and are interchangeable.
-
Seamless poured-in place
gasket.
-
Collar studs provided for
mounting inner panel.
-
Includes hardware kit with
panel mounting nuts and sealing washers for wall mounting
holes.
-
Bonding stud provided on door
and grounding stud installed in enclosure.
-
Hinges are constructed from
304 stainless steel.
-
Hinge pins are stainless
steel.
-
Quarter turn latches are zinc
die cast with black EID-EPoxy finish.
Finish:
Cover and enclosure are
phosphatized and finished with a recoatable powder inside and
out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured
light gray (LG).
Accessories:
-
Air conditioners
-
Blowers
-
Breather Kits
-
DIN Rails
-
DIN Rail Mounting Kit
-
Door Stop Kit
-
Filter fans
-
Gland Plates
-
Heaters
-
Handles
-
Inner Panels
-
Quarter Turn Inserts and Keys
-
Literature Pocket
-
Mounting Foot Kit
-
Swing Frame
-
Swing Panel
-
Replacement Hinge Pins
-
Replacement Quarter Turn
Assemblies
-
Thermostats
-
Touch Up Paint
-
UL/CSA Approved Hardware Kit
-
Padlock Adapter (EPA)

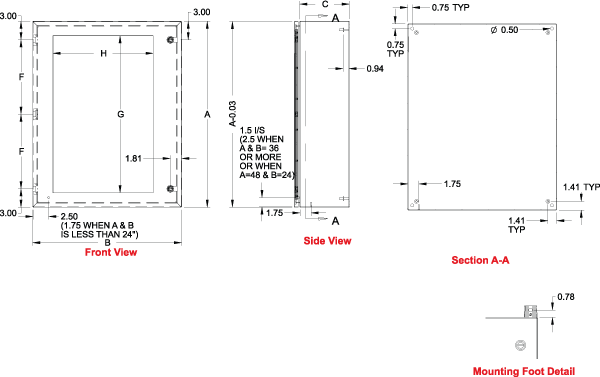

Part No.
(ANSI 61 Gray) |
Part No. (RAL7035
Light Gray) |
Overall
Dimensions |
Door/
Body Gauge |
Latch¹ qty |
Hinge qty |
|
Viewing
Area |
Optional Panel Part No. |
Inner
Panel Dimensions |
Ship Wt. lbs |
|
A |
B |
C |
F |
G |
H |
D |
E |
|
EID-EN4SD16126WGY |
EID-EN4SD16126WLG |
16 |
12 |
6 |
16 |
1 |
2 |
10 |
11.33 |
6.71 |
EID-EP1612 |
14.2 |
10.2 |
16 |
|
EID-EN4SD20166WGY |
EID-EN4SD20166WLG |
20 |
16 |
6 |
16 |
1 |
2 |
14 |
15.33 |
10.71 |
EID-EP2016 |
18.2 |
14.2 |
22 |
|
EID-EN4SD20206WGY |
EID-EN4SD20206WLG |
20 |
20 |
6 |
16 |
1 |
2 |
14 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
26 |
|
EID-EN4SD24206WGY |
EID-EN4SD24206WLG |
24 |
20 |
6 |
16 |
1 |
2 |
18 |
19.33 |
14.71 |
EID-EP2420 |
22.2 |
18.2 |
30 |
|
EID-EN4SD24246WGY |
EID-EN4SD24246WLG |
24 |
24 |
6 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
37 |
|
EID-EN4SD16128WGY |
EID-EN4SD16128WLG |
16 |
12 |
8 |
16 |
1 |
2 |
10 |
11.33 |
6.71 |
EID-EP1612 |
14.2 |
10.2 |
16 |
|
EID-EN4SD20168WGY |
EID-EN4SD20168WLG |
20 |
16 |
8 |
16 |
1 |
2 |
14 |
15.33 |
10.71 |
EID-EP2016 |
18.2 |
14.2 |
25 |
|
EID-EN4SD20208WGY |
EID-EN4SD20208WLG |
20 |
20 |
8 |
16 |
1 |
2 |
14 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
28 |
|
EID-EN4SD24208WGY |
EID-EN4SD24208WLG |
24 |
20 |
8 |
16 |
1 |
2 |
18 |
19.33 |
14.71 |
EID-EP2420 |
22.2 |
18.2 |
32 |
|
EID-EN4SD24248WGY |
EID-EN4SD24248WLG |
24 |
24 |
8 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
40 |
|
EID-EN4SD30248WGY |
EID-EN4SD30248WLG |
30 |
24 |
8 |
14 |
2 |
3 |
12 |
25.33 |
16.15 |
EID-EP3024 |
28.2 |
22.2 |
46 |
|
EID-EN4SD202012WGY |
EID-EN4SD202012WLG |
20 |
20 |
12 |
16 |
1 |
2 |
18 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
34 |
|
EID-EN4SD242012WGY |
EID-EN4SD242012WLG |
24 |
20 |
12 |
16 |
1 |
2 |
18 |
19.33 |
14.71 |
EID-EP2420 |
22.2 |
18.2 |
38 |
|
EID-EN4SD242412WGY |
EID-EN4SD242412WLG |
24 |
24 |
12 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
47 |
|
EID-EN4SD302412WGY |
EID-EN4SD302412WLG |
30 |
24 |
12 |
14 |
2 |
3 |
12 |
25.33 |
16.15 |
EID-EP3024 |
28.2 |
22.2 |
57 |
|
EID-EN4SD242416WGY |
EID-EN4SD242416WLG |
24 |
24 |
16 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
66 |
|
EID-EN4SD242420WGY |
EID-EN4SD242420WLG |
24 |
24 |
20 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
70 |
|
EID-EN4SD302420WGY |
EID-EN4SD302420WLG |
30 |
24 |
20 |
14 |
2 |
3 |
12 |
25.33 |
16.15 |
EID-EP3024 |
28.2 |
22.2 |
82 |
|
