Commercial
Electrical Enclosure C-Box Series:
C-Box
Hinged Cover
with Knockouts
Series Enclosures - NEMA 1
C-Box
Hinged Cover
with Knockouts
Series Enclosures - NEMA 1
Application:
-
Designed for general purpose
indoor commercial use as a junction, pull or switch box.
-
Hinged cover with latch
provides easy access during installation and maintenance.
Standards:
-
UL-50 Type 1
-
CSA Type 1
-
Complies with
-
NEMA Type 1
-
IEC 60529, IP30
Construction:
-
Formed and spot welded from 16
or 14 gauge steel depending on size.
-
Formed steel covers close by
use of slotted quarter turn latch.
-
Full swing door using butt
hinges.
-

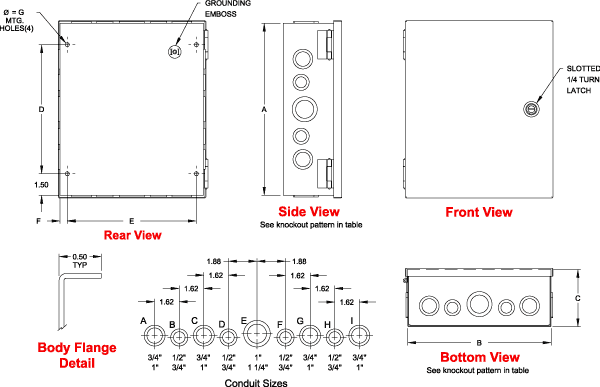

Easily removed knockouts on
all 4 sides (see drawings for sizes and locations).
-
Through holes in back for wall
mounting.
-
Grounding location embossed in
body.
Finish:
Accessories:
|
Part No.
(Click for DXF)
|
Overall
Dimensions |
Meeting
Centers |
|
Knockout Pattern
Sides |
Knockout Pattern
Top & Bottom |
Ship
Wt.
lbs. |
|
A |
B |
C |
D |
E |
F |
G |
|
EID-CHKO663 |
6 |
6 |
4 |
3 |
5.0 |
0.50 |
0.28 |
B-C-D |
B-C-D |
3 |
|
EID-CHKO644 |
6 |
4 |
4 |
3 |
3.0 |
0.50 |
0.28 |
B-C-D |
A - B |
3 |
|
EID-CHKO664 |
6 |
6 |
4 |
3 |
5.0 |
0.50 |
0.28 |
B-C-D |
B-C-D |
3 |
|
EID-CHKO864 |
8 |
6 |
4 |
5 |
5.0 |
0.50 |
0.28 |
F-G-H-I |
B-C-D |
4 |
|
EID-CHKO884 |
8 |
8 |
4 |
5 |
7.0 |
0.50 |
0.28 |
F-G-H-I |
F-G-H-I |
5 |
|
EID-CHKO1084 |
10 |
8 |
4 |
7 |
7.0 |
0.50 |
0.28 |
F-G-H-I |
F-G-H-I |
6 |
|
EID-CHKO10104 |
10 |
10 |
4 |
7 |
9.0 |
0.50 |
0.28 |
F-G-H-I |
C-D-E-F-G |
7 |
|
EID-CHKO1284 |
12 |
8 |
4 |
9 |
7.0 |
0.50 |
0.28 |
C-D-E-F-G |
F-G-H-I |
8 |
|
EID-CHKO12104 |
12 |
10 |
4 |
9 |
9.0 |
0.50 |
0.28 |
C-D-E-F-G |
C-D-E-F-G |
8 |
|
EID-CHKO12124 |
12 |
12 |
4 |
9 |
11.0 |
0.50 |
0.28 |
C-D-E-F-G |
C-D-E-F-G |
9 |
|
EID-CHKO16124 |
16 |
12 |
4 |
13 |
11.0 |
0.50 |
0.28 |
B-C-D-E-F-G-H |
C-D-E-F-G |
12 |
|
EID-CHKO18124 |
18 |
12 |
4 |
15 |
11.0 |
0.50 |
0.28 |
A-B-C-D-E-F-G-H-I |
C-D-E-F-G |
12 |
|
EID-CHKO666 |
6 |
6 |
6 |
3 |
5.0 |
0.50 |
0.28 |
B-C-D |
B-C-D |
4 |
|
EID-CHKO886 |
8 |
8 |
6 |
5 |
7.0 |
0.50 |
0.28 |
F-G-H-I |
F-G-H-I |
6 |
|
EID-CHKO1086 |
10 |
8 |
6 |
7 |
7.0 |
0.50 |
0.28 |
F-G-H-I |
F-G-H-I |
7 |
|
EID-CHKO10106 |
10 |
10 |
6 |
7 |
9.0 |
0.50 |
0.28 |
F-G-H-I |
C-D-E-F-G |
8 |
|
EID-CHKO12106 |
12 |
10 |
6 |
9 |
9.0 |
0.50 |
0.28 |
C-D-E-F-G |
C-D-E-F-G |
8 |
|
EID-CHKO12126 |
12 |
12 |
6 |
9 |
11.0 |
0.50 |
0.28 |
C-D-E-F-G |
C-D-E-F-G |
10 |
|
EID-CHKO16126 |
16 |
12 |
6 |
13 |
11.0 |
0.50 |
0.28 |
B-C-D-E-F-G-H |
C-D-E-F-G |
13 |
|
EID-CHKO16166 |
16 |
16 |
6 |
13 |
15.0 |
0.50 |
0.28 |
B-C-D-E-F-G-H |
B-C-D-E-F-G-H |
14 |
|
EID-CHKO18126 |
18 |
12 |
6 |
15 |
11.0 |
0.50 |
0.28 |
A-B-C-D-E-F-G-H-I |
C-D-E-F-G |
14 |
|
EID-CHKO18186 |
18 |
18 |
6 |
15 |
17.0 |
0.50 |
0.28 |
A-B-C-D-E-F-G-H-I |
A-B-C-D-E-F-G-H-I |
20 |
|
EID-CHKO24186 |
24 |
18 |
6 |
21 |
17.0 |
0.50 |
0.28 |
A-B-C-D-E-F-G-H-I |
A-B-C-D-E-F-G-H-I |
24 |
|
EID-CHKO24246 |
24 |
24 |
6 |
21 |
22.5 |
0.75 |
0.44 |
A-B-C-D-E-F-G-H-I |
A-B-C-D-E-F-G-H-I |
40 |
|
EID-CHKO30246 |
30 |
24 |
6 |
27 |
22.5 |
0.75 |
0.44 |
A-B-C-D-E-F-G-H-I |
A-B-C-D-E-F-G-H-I |
49 |
|
EID-CHKO36246 |
36 |
24 |
6 |
33 |
22.5 |
0.75 |
0.44 |
A-B-C-D-E-F-G-H-I |
A-B-C-D-E-F-G-H-I |
57 |
|
EID-CHKO36248 |
36 |
24 |
8 |
33 |
22.5 |
0.75 |
0.44 |
A-B-C-D-E-F-G-H-I |
A-B-C-D-E-F-G-H-I |
60 |
|
